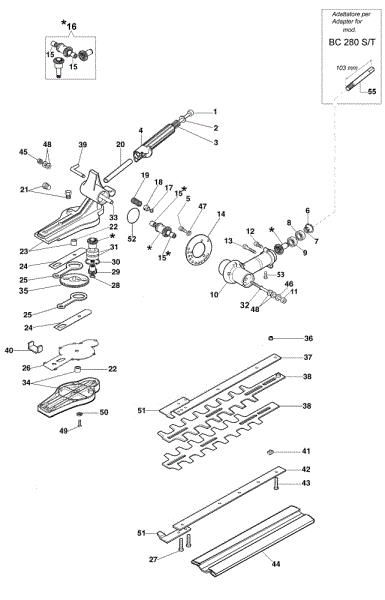

Complete illustrated parts list EH 48 Hedgetrimmer attachment

Name: Complete illustrated parts list EH 48 Hedgetrimmer attachment
Brand: OLEOMAC
SKU: 3953391
Availability: InStock
Rating: 5.0 (1 reviews)

Trimmers EH 48 Hedgetrimmer attachment Complete illustrated parts list Brand Oleo-Mac

Fabricante: OLEOMAC

In case of spare parts order of EH 48 Hedgetrimmer attachment brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p

Overview
Contact Us

Seu nome *

Seu e-mail *

Questão *

1 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€10,00 Iva incluído

Qty:

2 Washer

Spare Part Washer Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€6,30 Iva incluído

Qty:

3 Spring

Spare Part Spring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,90 Iva incluído

Qty:

4 Handle

Spare Part Handle Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€5,95 Iva incluído

Qty:

5 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 3

€0,63 Iva incluído

Qty:

6 Snap ring

Spare Part Snap ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,22 Iva incluído

Qty:

7 Ring

Spare Part Ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€6,83 Iva incluído

Qty:

8 Bearing

Spare Part Bearing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€26,23 Iva incluído

Qty:

9 Bearing

Spare Part Bearing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€26,23 Iva incluído

Qty:

10 Case

Spare Part Case Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€58,19 Iva incluído

Qty:

11 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€9,71 Iva incluído

Qty:

12 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€2,34 Iva incluído

Qty:

13 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,42 Iva incluído

Qty:

14 Disk

Spare Part Disk Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€6,73 Iva incluído

Qty:

15 Bearing

Spare Part Bearing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€12,30 Iva incluído

Qty:

16 Bevel gear set

Spare Part Bevel gear set Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€172,66 Iva incluído

Qty:

17 Snap ring

Spare Part Snap ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€3,95 Iva incluído

Qty:

18 Bushing

Spare Part Bushing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€8,30 Iva incluído

Qty:

19 Spring

Spare Part Spring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,85 Iva incluído

Qty:

20 Pipe

Spare Part Pipe Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€22,68 Iva incluído

Qty:

21 Cap

Spare Part Cap Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€12,64 Iva incluído

Qty:

22 Bushing

Spare Part Bushing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€4,39 Iva incluído

Qty:

23 Gear housing

Spare Part Gear housing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€57,01 Iva incluído

Qty:

24 Plate

Spare Part Plate Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€12,83 Iva incluído

Qty:

25 Connecting rod

Spare Part Connecting rod Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€17,18 Iva incluído

Qty:

26 Gasket

Spare Part Gasket Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€12,88 Iva incluído

Qty:

27 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€7,47 Iva incluído

Qty:

28 Snap ring

Spare Part Snap ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,66 Iva incluído

Qty:

29 Sprocket

Spare Part Sprocket Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€26,71 Iva incluído

Qty:

30 Snap ring

Spare Part Snap ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,42 Iva incluído

Qty:

31 Bearing

Spare Part Bearing Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€26,23 Iva incluído

Qty:

32 O-ring

Spare Part O-ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€6,64 Iva incluído

Qty:

33 Pipe

Spare Part Pipe Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€23,54 Iva incluído

Qty:

34 Cover

Spare Part Cover Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€28,48 Iva incluído

Qty:

35 Chain sprocket

Spare Part Chain sprocket Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€133,20 Iva incluído

Qty:

36 Nut

Spare Part Nut Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 4

€4,98 Iva incluído

Qty:

37 Support

Spare Part Support Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€26,23 Iva incluído

Qty:

38 Blade

Spare Part Blade Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€77,21 Iva incluído

Qty:

39 Pin

Spare Part Pin Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€13,66 Iva incluído

Qty:

40 Gasket

Spare Part Gasket Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€20,43 Iva incluído

Qty:

41 Spacer

Spare Part Spacer Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 5

€8,78 Iva incluído

Qty:

42 Support

Spare Part Support Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€26,23 Iva incluído

Qty:

43 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 4

€9,61 Iva incluído

Qty:

44 Guard

Spare Part Guard Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€29,29 Iva incluído

Qty:

45 Nut

Spare Part Nut Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€1,95 Iva incluído

Qty:

46 Washer

Spare Part Washer Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€6,64 Iva incluído

Qty:

47 Washer

Spare Part Washer Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 3

€4,98 Iva incluído

Qty:

48 Washer

Spare Part Washer Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 4

€7,22 Iva incluído

Qty:

49 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 7

€7,12 Iva incluído

Qty:

50 Washer

Spare Part Washer Complete illustrated parts list Trimmers Brand Oleo-Mac

€2,44 Iva incluído

Qty:

51 Guard

Spare Part Guard Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 2

€13,63 Iva incluído

Qty:

52 Ring

Spare Part Ring Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€9,86 Iva incluído

Qty:

53 Screw

Spare Part Screw Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€2,34 Iva incluído

Qty:

55 Adapter drive shaft

Spare Part Adapter drive shaft Complete illustrated parts list Trimmers Brand Oleo-Mac Required Quantity: 1

€31,46 Iva incluído

Qty:
